Cirrus 40/1 PTC Fan Heater – 60W, 24V Heater | 24V Fan
€77.84
Product information "Cirrus 40/1 PTC Fan Heater – 60W, 24V Heater | 24V Fan"

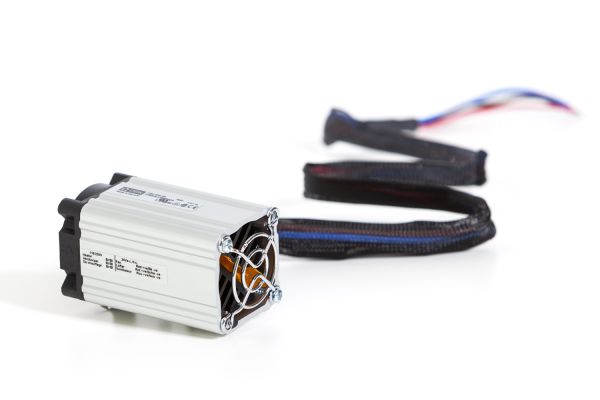

Cirrus 40/1 PTC Fan Heater – 60W, 24V Heater | 24V Fan
The Cirrus 40/1 PTC Fan Heater is a compact and efficient heating solution designed for targeted air heating and reliable climate control in electrical enclosures, control cabinets, and sensitive electronics. With a 60W PTC heating element (24V) and a dedicated 24V DC or AC axial fan, this model offers dependable protection against condensation and frost, ensuring optimal operating conditions for your equipment.
Key Features
60W Heating Power: Provides energy-efficient heating for small to medium-sized enclosures and cabinets.
24V DC/AC Operation: Both the heater and fan operate on 24V DC or AC, allowing for safe and flexible integration into low-voltage systems.
PTC Technology: Self-regulating ceramic heating element dynamically adjusts power output, preventing overheating and maximizing safety and efficiency.
Separate Power Supplies: Independent circuits for the heater and fan enable flexible operation, including a fan-only air circulation mode.
Compact & Durable: Lightweight construction with a robust aluminum and heat-resistant plastic housing, designed for easy DIN rail mounting (TS35).
Easy Installation: Pre-wired and equipped with a DIN rail clip for quick, space-saving integration.
Long Service Life: High-quality axial fan rated for up to 120,000 hours (L10 at 40°C).
Certified Safety: Worldwide approvals including CE, VDE, UL, and CSA.
Optional Accessories: Finger guard available for added safety at the air outlet.
Technical Specifications
Parameter | Value |
|---|---|
Heating Power | 60 W (at 10°C) |
Heater Voltage | 24 V DC or 24 V AC |
Fan Voltage | 24 V DC or 24 V AC |
Fan Airflow | 13.6 m³/h |
Fan Lifetime (L10 at 40°C) | 120,000 hours |
Operating Temperature Range | -10°C to +70°C |
Protection Class | I |
Ingress Protection | IP20 |
Dimensions (WxHxL) | 42 x 42 x 72 mm |
Weight | 175 g |
Mounting | DIN rail (TS35) |
Finger Guard | Optional |
Inrush Current (max) | 7.5 A |
Typical Applications
Electrical and control cabinets
Industrial automation enclosures
Outdoor kiosks and terminals
Payment, ticket, and parking machines
Renewable energy and telecom cabinets
CCTV, display, and sensor protection
Why Choose the Cirrus 40/1?
The Cirrus 40/1 stands out for its compact size, high energy efficiency, and maintenance-free operation. Its PTC technology ensures safe, self-regulating heating, while the robust design and long-life fan guarantee reliable service even in demanding environments. This makes it an ideal solution for protecting sensitive electronics from condensation, frost, and temperature fluctuations.
| : | 60 Watt |
|---|
