Control devices

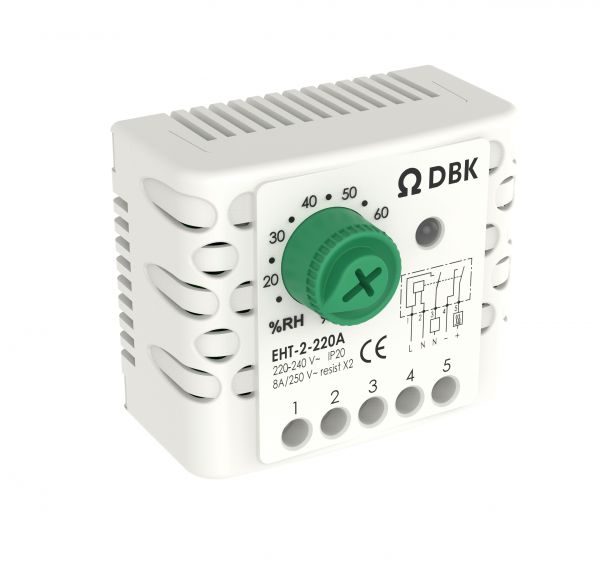

DBK Electronic HygrostatThe DBK Electronic Hygrostat is a precision humidity controller designed for use in electrical enclosures, control cabinets, and sensitive equipment housings. It automatically monitors and regulates the relative humidity, activating connected heaters or dehumidifiers to prevent condensation, corrosion, and moisture-related failures.Key FeaturesAccurate Humidity Regulation: Continuously measures and controls relative humidity, ensuring optimal protection for sensitive electronics.Adjustable Setpoint: Humidity threshold can be easily set to match your application’s requirements.Automatic Operation: Switches connected devices (such as PTC heaters or dehumidifiers) on or off as soon as the set humidity value is reached.Wide Voltage Compatibility: Available for standard supply voltages (typically 230V AC or 24V DC, depending on model).Compact & Easy Installation: Designed for DIN rail mounting, allowing for quick and simple integration into any control panel.Reliable & Maintenance-Free: Utilizes high-quality electronic sensors for long-term, maintenance-free operation.LED Status Indicator: Visual feedback for operational status and switching activity.Technical SpecificationsParameterValueManufacturerDBKOperating Voltage230V AC or 24V DC (model dependent)Humidity Setting RangeTypically 40–90% RHSwitching CapacityUp to 10A resistive loadMountingDIN rail (35 mm)HousingPlastic, compact designDimensions(Model dependent, e.g. 67 x 50 x 38 mm)Status DisplayLEDProtection ClassIP20Typical ApplicationsElectrical and control cabinetsAutomation and switchgear panelsTelecommunication enclosuresAny application where reliable humidity management is neededBenefitsPrevents condensation and corrosionProtects sensitive electronics and componentsEasy to install and operateMaintenance-free and highly reliable

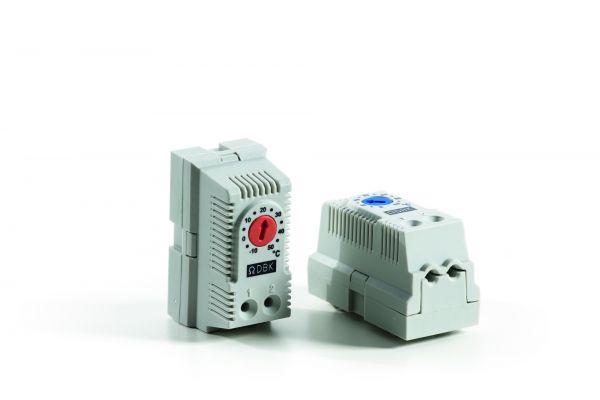

Thermostat FGT 100 – Normally Closed (NC) | Heating ControlThe DBK FGT 100 Thermostat is a compact, adjustable thermostat designed for precise heating control in electrical enclosures, control cabinets, and industrial equipment. As a “normally closed” (NC, opener) device, it opens the contact when the set temperature is reached, making it ideal for switching off heaters or activating alarms once the desired temperature is achieved.Key FeaturesHeating Control (Normally Closed): The FGT 100 keeps the circuit closed below the setpoint and opens it when the ambient temperature rises above the set temperature—perfect for switching off heating equipment.Adjustable Temperature Range: Settable from -10°C to +50°C (14°F to 122°F) for flexible use in various environments.Wide Voltage Compatibility: Operates on 12–24V DC or 115–230V AC, suitable for global applications.High Switching Capacity: Rated for up to 16A at 230V AC, 2.5A at 24V DC, or 5A at 12V DC.Easy DIN Rail Mounting: Integrated DIN clip (EN50022) for quick and secure installation in enclosures.Compact & Lightweight: Space-saving design with clear color differentiation—red dial for heating (NC) and blue for cooling (NO).Reliable & Safe: Worldwide approvals (CE, UL, CSA, UKCA, VDE), IP30 protection, and up to 100,000 switching cycles.Technical SpecificationsParameterValueFunctionHeating control (Normally Closed, NC)Temperature Range-10°C to +50°C (14°F to 122°F)Hysteresis7K ± 4KVoltage12–24V DC, 115–230V ACSwitching Capacity16A @ 230V AC, 2.5A @ 24V DC, 5A @ 12V DCProtection ClassIIDegree of ProtectionIP30MountingDIN rail (35 mm, EN50022)Dimensions (LxWxH)65 x 33 x 43 mmApprovalsCE, UL, CSA, UKCA, VDECycle Life100,000 cycles @ 100–250V ACTypical ApplicationsElectrical and control cabinetsIndustrial automation panelsTelecommunication enclosuresClimate control for kiosks, ticket machines, and outdoor terminalsBenefitsReliable and precise heating controlEasy to install and adjustMaintenance-free operationSuitable for international use
Thermostat FGT 200 – Normally Open (NO) | Cooling ControlThe DBK FGT 200 Thermostat is a compact, adjustable thermostat designed for precise cooling control in electrical enclosures, control cabinets, and industrial equipment. As a “closer” (normally open, NO), it closes the contact when the set temperature is reached, making it ideal for activating fans, cooling devices, or alarms.Key FeaturesCooling Control (Normally Open): The FGT 200 closes the circuit when the ambient temperature rises above the setpoint—perfect for switching on cooling equipment.Adjustable Temperature Range: Settable from 0°C to +60°C (32°F to 140°F) for flexible use in various environments.Wide Voltage Compatibility: Operates on 12–24V DC or 115–230V AC, suitable for global applications.High Switching Capacity: Rated for up to 10A at 230V AC, 2.5A at 24V DC, or 5A at 12V DC.Easy DIN Rail Mounting: Integrated DIN clip (EN50022) for quick and secure installation in enclosures.Compact & Lightweight: Space-saving design with clear color differentiation—blue dial for cooling (NO) and red for heating (NC).Reliable & Safe: Worldwide approvals (CE, UL, CSA, UKCA), IP30 protection, and up to 100,000 switching cycles.Technical SpecificationsParameterValueFunctionCooling control (Normally Open, NO)Temperature Range0°C to +60°C (32°F to 140°F)Hysteresis7K ± 4KVoltage12–24V DC, 115–230V ACSwitching Capacity10A @ 230V AC, 2.5A @ 24V DC, 5A @ 12V DCProtection ClassIIDegree of ProtectionIP30MountingDIN rail (35 mm, EN50022)Dimensions (LxWxH)65 x 33 x 43 mmApprovalsCE, UL, CSA, UKCACycle Life100,000 cycles @ 100–250V ACTypical ApplicationsElectrical and control cabinetsIndustrial automation panelsTelecommunication enclosuresClimate control for kiosks, ticket machines, and outdoor terminalsBenefitsReliable and precise cooling controlEasy to install and adjustMaintenance-free operationSuitable for international use
