Fan heater

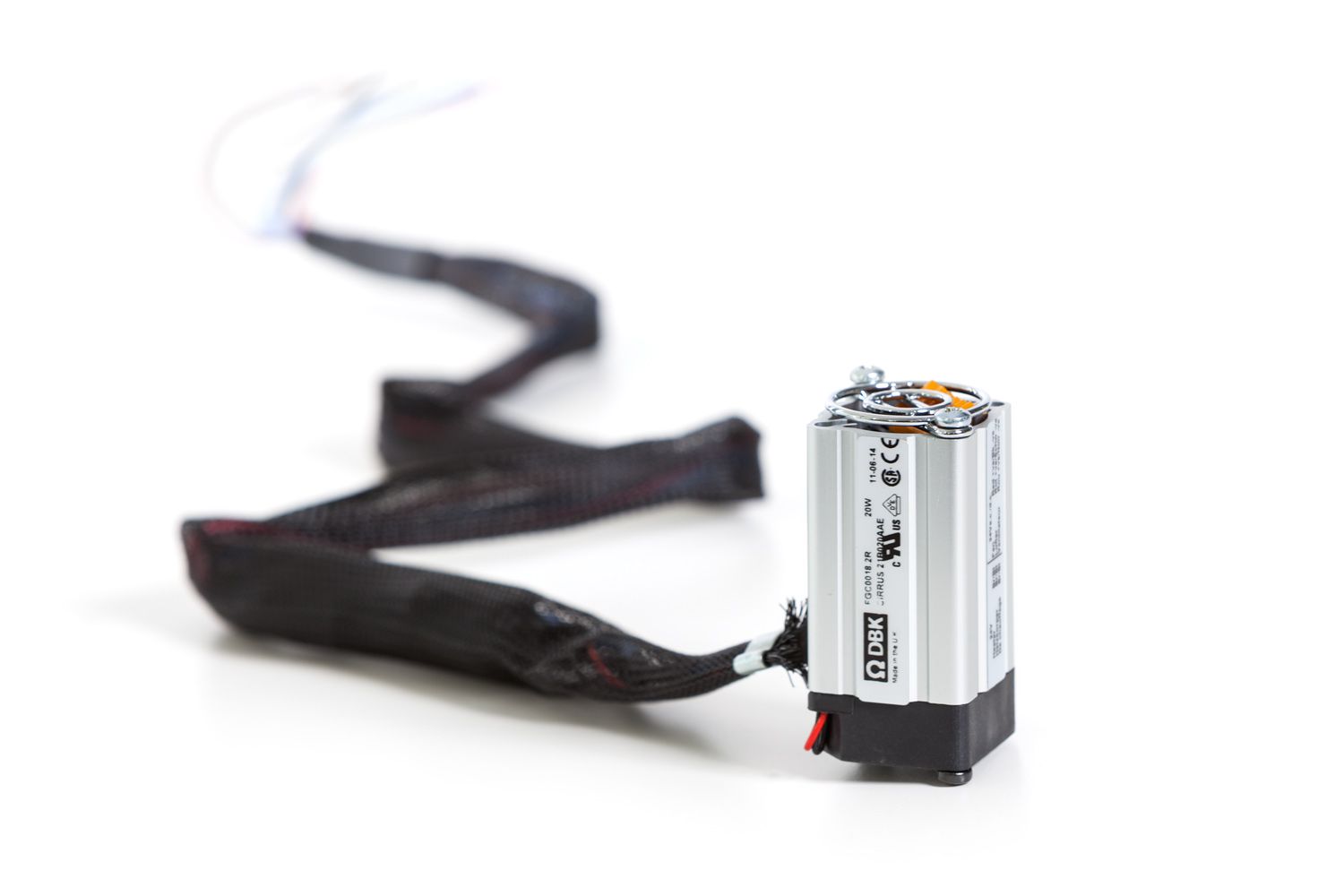

Cirrus 25/1 PTC Fan Heater – 10 Watt, 24 VThe DBK Cirrus 25/1 is a compact, high-performance PTC fan heater designed for targeted air heating and moisture protection in electrical enclosures and control cabinets. With a power output of 10 watts and a 24 V supply, this heater offers reliable frost and condensation prevention for sensitive electronic components in a wide range of industrial and commercial applications.Key Features:Power Output: 10 W nominal heating power at 10°CVoltage: Separate power supplies for fan (24 V AC/DC) and heating element (24 V AC/DC)Compact Design: Small footprint with a robust housing made of heat-resistant plastic and aluminumEfficient PTC Technology: Self-regulating heating element dynamically adjusts power without exceeding maximum temperature, ensuring high energy efficiency and operational safety without additional control componentsAxial Fan: Provides targeted air circulation with a fan lifetime of up to 120,000 hours (L10 at 40°C)Easy Installation: Equipped with a DIN rail clip and connection cable for quick and space-saving integrationOptional Safety: Available with finger guard at air outlet for enhanced protectionIngress Protection: IP20 rated for indoor electrical cabinet environmentsApplications:The Cirrus 25/1 is ideal for heating and frost protection in various electrical and electronic housings such as:Control cabinets and electrical enclosuresATM and ticket machinesParking payment systemsAccess control systemsFuel dispensers and energy portsRenewable energy equipment and telecom cabinetsCCTV and display heatersWhy Choose the Cirrus 25/1?Thanks to the advanced PTC (Positive Temperature Coefficient) heating technology, the Cirrus 25/1 ensures a safe, energy-efficient, and maintenance-free heating solution. Its separate power supply for fan and heater allows for flexible operation modes, including fan-only circulation. This versatility, combined with a compact and robust design, makes it the perfect choice for protecting sensitive electronics from moisture, frost, and condensation in harsh environments.Technical Highlights:FeatureSpecificationHeating Power10 W nominal at 10°CFan Voltage24 V AC/DCHeater Voltage24 V AC/DCHousing MaterialHeat-resistant plastic and aluminumDimensions (WxH)26 x 27 mm cross-sectionLength50 mmFan LifeUp to 120,000 hours (L10 at 40°C)Protection ClassIII / SELVIngress ProtectionIP20Certifications:The Cirrus 25/1 complies with worldwide safety standards including CE, VDE, UL, and CSA, ensuring reliable and certified performance.

Cirrus 25/1 PTC Fan Heater – 20W, 24V Heater | 24V DC FanThe Cirrus 25/1 PTC Fan Heater is a compact, energy-efficient heating solution designed for targeted air heating and reliable climate control in electrical enclosures, control cabinets, and sensitive electronics. Featuring a 20W PTC heating element and a dedicated 24V DC axial fan, this model ensures optimal protection against condensation and frost, keeping your equipment safe and operational.Key Features20W Heating Power: Delivers effective, energy-efficient heating for small to medium enclosures.24V DC Operation: Both the heater and fan operate on 24V DC, making integration into low-voltage systems simple and safe.PTC Technology: Self-regulating ceramic heating element dynamically adjusts power output, preventing overheating and maximizing safety and efficiency.Separate Fan Circuit: Independent power supply for the fan allows for flexible operation, including a fan-only air circulation mode.Compact & Robust: Lightweight construction with a durable aluminum and heat-resistant plastic housing, designed for easy DIN rail mounting.Easy Installation: Pre-wired and equipped with a DIN rail clip for quick, space-saving installation.Long Service Life: High-quality axial fan rated for up to 120,000 hours (L10 at 40°C).Certified Safety: Worldwide approvals including CE, VDE, UL, and CSA.Optional Accessories: Finger guard available for added safety at the air outlet.Technical SpecificationsParameterValueHeating Power20 W (at 10°C)Heater Voltage24 V DCFan Voltage24 V DCDimensions (WxHxL)26 x 27 x 50 mmWeight60 gFan Airflow5.1 m³/hFan Lifetime (L10 at 40°C)120,000 hoursOperating Temperature Range-10°C to +70°CProtection ClassIII / SELVIngress ProtectionIP20MountingDIN rail (35 mm)Finger GuardOptionalTypical ApplicationsElectrical and control cabinetsIndustrial automation enclosuresOutdoor kiosks and terminalsPayment, ticket, and parking machinesRenewable energy and telecom cabinetsCCTV, display, and sensor protectionWhy Choose the Cirrus 25/1?The Cirrus 25/1 stands out for its compact size, energy efficiency, and maintenance-free operation. Its PTC technology ensures safe, self-regulating heating, while the robust design and long-life fan guarantee reliable service even in demanding environments. This makes it an ideal solution for protecting sensitive electronics from condensation, frost, and temperature fluctuations.

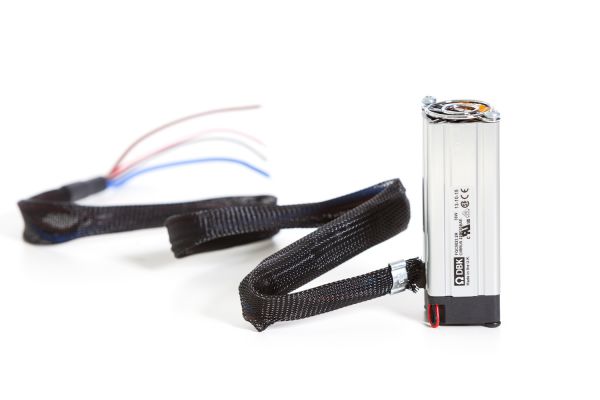

Cirrus 25/2 PTC Fan Heater – 20W, 12V Heater | 12V DC FanThe Cirrus 25/2 PTC Fan Heater is a compact and efficient heating solution, designed for targeted air heating and climate control in electrical enclosures, control cabinets, and sensitive electronics. With a 20W PTC heating element and a dedicated 12V DC axial fan, this model offers reliable protection against moisture and frost, ensuring optimal operating conditions for your equipment.Key Features20W Heating Power: Delivers effective and energy-efficient heating for small to medium-sized enclosures.12V DC Operation: Both the heater and fan run on 12V DC, making integration into low-voltage systems simple and safe.PTC Technology: Self-regulating ceramic heating element dynamically adjusts power output, preventing overheating and maximizing safety and efficiency.Separate Fan Circuit: Independent power supply for the fan allows for flexible operation, including fan-only air circulation.Compact & Robust: Lightweight construction with a durable aluminum and heat-resistant plastic housing, designed for easy DIN rail mounting.Easy Installation: Pre-wired and equipped with a DIN rail clip for fast, space-saving installation.Long Service Life: High-quality axial fan rated for up to 120,000 hours (L10 at 40°C).Certified Safety: Worldwide approvals including CE, VDE, UL, and CSA.Optional Accessories: Finger guard available for added safety at the air outlet.Technical SpecificationsParameterValueHeating Power20 W (at 10°C)Heater Voltage12 V DCFan Voltage12 V DCDimensions (WxHxL)26 x 27 x 72 mmWeight90 gFan Airflow5.1 m³/hFan Lifetime (L10 at 40°C)120,000 hoursOperating Temperature Range-10°C to +70°CProtection ClassIII / SELVIngress ProtectionIP20MountingDIN rail (35 mm)Finger GuardOptionalTypical ApplicationsElectrical and control cabinetsIndustrial automation enclosuresOutdoor kiosks and terminalsPayment, ticket, and parking machinesRenewable energy and telecom cabinetsCCTV, display, and sensor protectionWhy Choose the Cirrus 25/2?The Cirrus 25/2 stands out for its compact size, energy efficiency, and maintenance-free operation. Its PTC technology ensures safe, self-regulating heating, while the robust design and long-life fan guarantee reliable service even in demanding environments. This makes it an ideal solution for protecting sensitive electronics from condensation, frost, and temperature fluctuations.

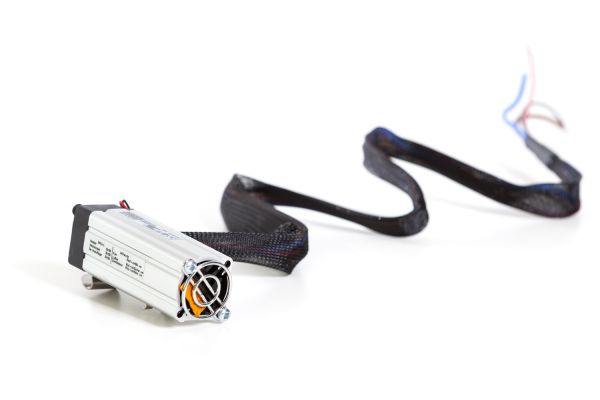

Cirrus 25/2 PTC Fan Heater – 40W, 24V Heater | 24V FanThe Cirrus 25/2 PTC Fan Heater is a compact, high-efficiency heating solution designed for targeted air heating and reliable climate control in electrical enclosures, control cabinets, and sensitive electronics. With a robust 40W PTC heating element and a dedicated 24V DC or AC axial fan, this model offers dependable protection against condensation and frost, ensuring optimal operating conditions for your equipment.Key Features40W Heating Power: Delivers powerful, energy-efficient heating for small to medium-sized enclosures and cabinets.24V DC/AC Operation: Both the heater and fan operate on 24V DC or AC, making integration into low-voltage systems simple and safe.PTC Technology: Self-regulating ceramic heating element dynamically adjusts power output, preventing overheating and maximizing safety and efficiency.Separate Power Supplies: Independent circuits for the heater and fan allow for flexible operation, including a fan-only air circulation mode.Compact & Durable: Lightweight construction with a robust aluminum and heat-resistant plastic housing, designed for easy DIN rail mounting (35 mm).Easy Installation: Pre-wired and equipped with a DIN rail clip for quick, space-saving integration.Long Service Life: High-quality axial fan rated for up to 120,000 hours (L10 at 40°C).Certified Safety: Worldwide approvals including CE, VDE, UL, and CSA.Optional Accessories: Finger guard available for added safety at the air outlet.Technical SpecificationsParameterValueHeating Power40 W (at 10°C)Heater Voltage24 V DC or 24 V ACFan Voltage24 V DC or 24 V ACFan Airflow5.1 m³/hFan Lifetime (L10 at 40°C)120,000 hoursOperating Temperature Range-10°C to +70°CProtection ClassIIngress ProtectionIP20Dimensions (WxHxL)26 x 27 x 72 mmWeight90 gMountingDIN rail (35 mm)Finger GuardOptionalTypical ApplicationsElectrical and control cabinetsIndustrial automation enclosuresOutdoor kiosks and terminalsPayment, ticket, and parking machinesRenewable energy and telecom cabinetsCCTV, display, and sensor protectionWhy Choose the Cirrus 25/2?The Cirrus 25/2 stands out for its compact size, high energy efficiency, and maintenance-free operation. Its PTC technology ensures safe, self-regulating heating, while the robust design and long-life fan guarantee reliable service even in demanding environments. This makes it an ideal solution for protecting sensitive electronics from condensation, frost, and temperature fluctuations.

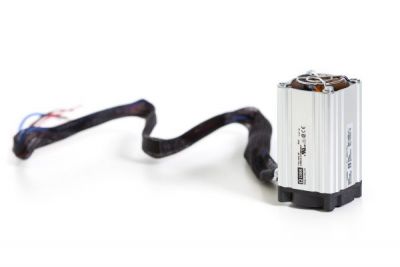

Cirrus 40/1 PTC Fan Heater – 100W, 230V Heater | 24V FanThe Cirrus 40/1 PTC Fan Heater is a compact and efficient heating solution designed for targeted air heating and reliable climate control in electrical enclosures, control cabinets, and sensitive electronics. With a 100W PTC heating element (230V) and a dedicated 24V DC or AC axial fan, this model offers dependable protection against condensation and frost, ensuring optimal operating conditions for your equipment.Key Features100W Heating Power: Provides energy-efficient heating for small to medium-sized enclosures and cabinets.24V DC/AC Fan Operation: The fan operates on 24V DC or AC, allowing for safe and flexible integration into low-voltage systems.PTC Technology: Self-regulating ceramic heating element dynamically adjusts power output, preventing overheating and maximizing safety and efficiency.Separate Power Supplies: Independent circuits for the heater (230V AC) and fan (24V DC/AC) enable flexible operation, including a fan-only air circulation mode.Compact & Durable: Lightweight construction with a robust aluminum and heat-resistant plastic housing, designed for easy DIN rail mounting (TS35).Easy Installation: Pre-wired and equipped with a DIN rail clip for quick, space-saving integration.Long Service Life: High-quality axial fan rated for up to 120,000 hours (L10 at 40°C).Certified Safety: Worldwide approvals including CE, VDE, UL, and CSA.Optional Accessories: Finger guard available for added safety at the air outlet.Technical SpecificationsParameterValueHeating Power100 W (at 10°C)Heater Voltage230 V ACFan Voltage24 V DC or 24 V ACFan Airflow12.4 m³/hFan Lifetime (L10 at 40°C)120,000 hoursOperating Temperature Range-10°C to +70°CProtection ClassIIngress ProtectionIP20Dimensions (WxHxL)42 x 42 x 72 mmWeight175 gMountingDIN rail (TS35)Finger GuardYesInrush Current (max)4.5 ATypical ApplicationsElectrical and control cabinetsIndustrial automation enclosuresOutdoor kiosks and terminalsPayment, ticket, and parking machinesRenewable energy and telecom cabinetsCCTV, display, and sensor protectionWhy Choose the Cirrus 40/1?The Cirrus 40/1 stands out for its compact size, high energy efficiency, and maintenance-free operation. Its PTC technology ensures safe, self-regulating heating, while the robust design and long-life fan guarantee reliable service even in demanding environments. This makes it an ideal solution for protecting sensitive electronics from condensation, frost, and temperature fluctuations.

Cirrus 40/1 PTC Fan Heater – 60W, 24V Heater | 24V FanThe Cirrus 40/1 PTC Fan Heater is a compact and efficient heating solution designed for targeted air heating and reliable climate control in electrical enclosures, control cabinets, and sensitive electronics. With a 60W PTC heating element (24V) and a dedicated 24V DC or AC axial fan, this model offers dependable protection against condensation and frost, ensuring optimal operating conditions for your equipment.Key Features60W Heating Power: Provides energy-efficient heating for small to medium-sized enclosures and cabinets.24V DC/AC Operation: Both the heater and fan operate on 24V DC or AC, allowing for safe and flexible integration into low-voltage systems.PTC Technology: Self-regulating ceramic heating element dynamically adjusts power output, preventing overheating and maximizing safety and efficiency.Separate Power Supplies: Independent circuits for the heater and fan enable flexible operation, including a fan-only air circulation mode.Compact & Durable: Lightweight construction with a robust aluminum and heat-resistant plastic housing, designed for easy DIN rail mounting (TS35).Easy Installation: Pre-wired and equipped with a DIN rail clip for quick, space-saving integration.Long Service Life: High-quality axial fan rated for up to 120,000 hours (L10 at 40°C).Certified Safety: Worldwide approvals including CE, VDE, UL, and CSA.Optional Accessories: Finger guard available for added safety at the air outlet.Technical SpecificationsParameterValueHeating Power60 W (at 10°C)Heater Voltage24 V DC or 24 V ACFan Voltage24 V DC or 24 V ACFan Airflow13.6 m³/hFan Lifetime (L10 at 40°C)120,000 hoursOperating Temperature Range-10°C to +70°CProtection ClassIIngress ProtectionIP20Dimensions (WxHxL)42 x 42 x 72 mmWeight175 gMountingDIN rail (TS35)Finger GuardOptionalInrush Current (max)7.5 ATypical ApplicationsElectrical and control cabinetsIndustrial automation enclosuresOutdoor kiosks and terminalsPayment, ticket, and parking machinesRenewable energy and telecom cabinetsCCTV, display, and sensor protectionWhy Choose the Cirrus 40/1?The Cirrus 40/1 stands out for its compact size, high energy efficiency, and maintenance-free operation. Its PTC technology ensures safe, self-regulating heating, while the robust design and long-life fan guarantee reliable service even in demanding environments. This makes it an ideal solution for protecting sensitive electronics from condensation, frost, and temperature fluctuations.

Cirrus 40/1 PTC Fan Heater – 80W, 230V Heater | 24V FanThe Cirrus 40/1 PTC Fan Heater is a compact and efficient heating solution designed for targeted air heating and climate control in electrical enclosures, control cabinets, and sensitive electronics. With an 80W PTC heating element (230V) and a dedicated 24V DC axial fan, this model offers reliable protection against condensation and frost, ensuring optimal operating conditions for your equipment.Key Features80W Heating Power: Delivers effective, energy-efficient heating for small to medium enclosures and cabinets.Separate Power Supplies: Independent circuits for the heater (230V AC) and fan (24V DC) allow for flexible operation and enhanced safety.PTC Technology: Self-regulating ceramic heating element dynamically adjusts power output, preventing overheating and maximizing safety and efficiency.Fan-Only Mode: The fan can be operated independently for air circulation without heating.Compact & Durable: Robust construction with an aluminum and heat-resistant plastic housing, designed for easy DIN rail mounting (TS35).Easy Installation: Pre-wired and equipped with a DIN rail clip for fast, space-saving integration.Long Service Life: High-quality axial fan rated for up to 120,000 hours (L10 at 40°C).Certified Safety: Worldwide approvals including CE, VDE, UL, and CSA.Optional Accessories: Finger guard and air filter available for added safety and air quality.Technical SpecificationsParameterValueHeating Power80 W (at 10°C)Heater Voltage230 V ACFan Voltage24 V DCFan Airflow12.4 m³/hInrush Current (max)3.5 ADimensions (WxHxL)42 x 42 x 65 mmWeight180 gMountingDIN rail (TS35)Protection ClassIIngress ProtectionIP20Fan Lifetime (L10 at 40°C)120,000 hoursOperating Temperature Range-10°C to +70°CTypical ApplicationsElectrical and control cabinetsIndustrial automation enclosuresOutdoor kiosks and terminalsPayment, ticket, and parking machinesRenewable energy and telecom cabinetsCCTV, display, and sensor protectionWhy Choose the Cirrus 40/1?The Cirrus 40/1 stands out for its compact size, energy efficiency, and maintenance-free operation. Its PTC technology ensures safe, self-regulating heating, while the robust design and long-life fan guarantee reliable service even in demanding environments. This makes it an ideal solution for protecting sensitive electronics from condensation, frost, and temperature fluctuations.

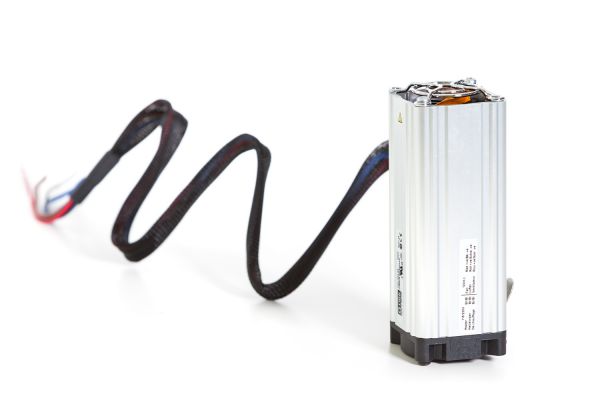

Cirrus 40/2 PTC Fan Heater – 230 W, 230 V Heater | 24 V FanThe DBK Cirrus 40/2 is a robust and efficient PTC fan heater, engineered for targeted air heating and reliable protection against moisture and frost in electrical enclosures and control cabinets. With a powerful 230 W heating element (230 V) and a separate 24 V fan, this model is ideal for industrial and commercial applications requiring dependable climate control for sensitive electronics.Key FeaturesHigh Heating Power: Delivers 230 W of heating at 10°C, ensuring rapid and effective temperature regulation in enclosures.Separate Power Supplies: Independent voltage for the heater (230 V AC) and fan (24 V AC/DC) allows flexible operation and enhanced safety. Advanced PTC Technology: The self-regulating PTC heating element dynamically adjusts its output, preventing overheating and maximizing energy efficiency—no additional switching components required.Durable Construction: Compact housing made from heat-resistant plastic and aluminum for long-lasting performance in demanding environments.Easy Installation: Designed for quick and space-saving DIN rail mounting (TS35), complete with connection cable for straightforward integrationSafety and Compliance: Protection class I, IP20 ingress protection, optional finger guard at the air outlet, and global certifications (CE, VDE, UL, CSA) for peace of mindLong Fan Lifetime: High-quality axial fan with a service life up to 120,000 hours at 40°C ensures reliable airflow and consistent performanceTechnical SpecificationsParameterValueHeating Power230 W at 10°CHeater Voltage230 V ACFan Voltage24 V AC/DCFan Airflow12.4 m³/hInrush Current (max)9 AOperating Temperature-10°C to +70°CDimensions (WxHxL)42 x 42 x 107 mmMountingDIN rail (TS35)Protection ClassIIngress ProtectionIP20Weight275 gFan Life (L10 at 40°C)120,000 hoursTypical ApplicationsElectrical and control cabinetsOutdoor enclosures and kiosksPayment, ticket, and parking machinesCCTV, display, and webcam heatersRenewable energy and telecom cabinetsWind turbine component protectionFuel dispensers and energy portsWhy Choose the Cirrus 40/2?The Cirrus 40/2 combines high performance with operational safety and energy efficiency, making it the preferred solution for protecting electronics in harsh or variable climates. Its separate power supply design, compact form factor, and reliable PTC technology ensure easy integration and maintenance-free operation in a wide range of industrial environments.

Cirrus 40/2 PTC Fan Heater – 150W, 230V Heater | 24V FanThe Cirrus 40/2 PTC Fan Heater is a compact and efficient heating solution designed for targeted air heating and reliable climate control in electrical enclosures, control cabinets, and sensitive electronics. Featuring a 150W PTC heating element (230V) and a dedicated 24V DC or AC axial fan, this model offers dependable protection against condensation and frost, ensuring optimal operating conditions for your equipment.Key Features150W Heating Power: Delivers robust, energy-efficient heating for small to medium-sized enclosures and cabinets.Separate Power Supplies: Independent circuits for the heater (230V AC) and fan (24V DC or AC) allow for flexible operation and enhanced safety.PTC Technology: The self-regulating ceramic heating element dynamically adjusts power output, preventing overheating and maximizing safety and efficiency.Fan-Only Mode: The fan can be operated independently for air circulation without heating.Compact & Durable: Robust construction with aluminum and heat-resistant plastic housing, designed for easy DIN rail mounting (TS35).Easy Installation: Pre-wired and equipped with a DIN rail clip for quick, space-saving integration.Long Service Life: High-quality axial fan rated for up to 120,000 hours (L10 at 40°C).Certified Safety: Worldwide approvals including CE, VDE, UL, and CSA.Optional Accessories: Finger guard available for added safety at the air outlet.Technical SpecificationsParameterValueHeating Power150 W (at 10°C)Heater Voltage230 V ACFan Voltage24 V DC or 24 V ACFan Airflow12.4 m³/hFan Lifetime (L10 at 40°C)120,000 hoursOperating Temperature Range-10°C to +70°CProtection ClassIIngress ProtectionIP20Dimensions (WxHxL)42 x 42 x 107 mmWeight260 gMountingDIN rail (TS35)Finger GuardYesInrush Current (max)10 ATypical ApplicationsElectrical and control cabinetsIndustrial automation enclosuresOutdoor kiosks and terminalsPayment, ticket, and parking machinesRenewable energy and telecom cabinetsCCTV, display, and sensor protectionWhy Choose the Cirrus 40/2?The Cirrus 40/2 stands out for its high energy efficiency, compact size, and maintenance-free operation. Its PTC technology ensures safe, self-regulating heating, while the robust design and long-life fan guarantee reliable service even in demanding environments. This makes it an ideal solution for protecting sensitive electronics from condensation, frost, and temperature fluctuations.

Cirrus 40/2 PTC Fan Heater – 230W, 230V Heater | 12V FanThe Cirrus 40/2 PTC Fan Heater is a high-performance, compact heating solution designed for precise air heating and climate control in electrical enclosures, control cabinets, and sensitive electronics. With a powerful 230W PTC heating element (230V) and a dedicated 12V DC or AC axial fan, this model ensures reliable protection against condensation and frost, keeping your equipment safe and operational.Key Features230W Heating Power: Delivers robust, energy-efficient heating for medium to large enclosures and cabinets.Separate Power Supplies: Independent circuits for the heater (230V AC) and fan (12V DC or AC) allow for flexible operation and enhanced safety.PTC Technology: The self-regulating ceramic heating element dynamically adjusts power output, preventing overheating and maximizing safety and efficiency.Fan-Only Mode: The fan can be operated independently for air circulation without heating.Compact & Durable: Robust construction with an aluminum and heat-resistant plastic housing, designed for easy DIN rail mounting (TS35).Easy Installation: Pre-wired and equipped with a DIN rail clip for fast, space-saving integration.Long Service Life: High-quality axial fan rated for up to 120,000 hours (L10 at 40°C).Certified Safety: Worldwide approvals including CE, VDE, UL, and CSA.Optional Accessories: Finger guard and air filter available for added safety and air quality.Technical SpecificationsParameterValueHeating Power230 W (at 10°C)Heater Voltage230 V ACFan Voltage12 V DC or 12 V ACFan Airflow17 m³/hInrush Current (max)9 ADimensions (WxHxL)42 x 42 x 107 mmWeight275 gMountingDIN rail (TS35)Protection ClassIIngress ProtectionIP20Fan Lifetime (L10 at 40°C)120,000 hoursOperating Temperature Range-10°C to +70°CTypical ApplicationsElectrical and control cabinetsIndustrial automation enclosuresOutdoor kiosks and terminalsPayment, ticket, and parking machinesRenewable energy and telecom cabinetsCCTV, display, and sensor protectionWhy Choose the Cirrus 40/2?The Cirrus 40/2 stands out for its high power-to-size ratio, energy efficiency, and maintenance-free operation. Its PTC technology ensures safe, self-regulating heating, while the robust design and long-life fan guarantee reliable service even in demanding environments. This makes it an ideal solution for protecting sensitive electronics from condensation, frost, and temperature fluctuations.

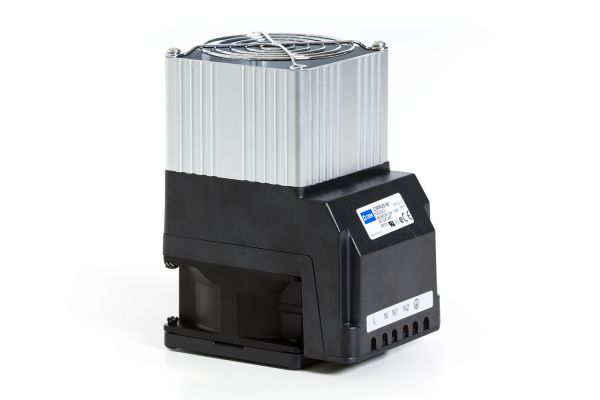

Compact Semiconductor Fan Heater Cirrus 80, 300/600 Watt The PTC fan heaters of the Cirrus series are high-performance units designed for heating air and providing directed airflow in closed electrical enclosures of all kinds. They consist of a PTC heating element (semiconductor heater) and an axial fan, housed in a compact aluminum and plastic casing. Thanks to the DIN clip and terminal block, the PTC fan heaters can be easily and space-savingly integrated into customer applications. They are particularly common in control cabinets, where they protect electronic components from moisture and frost. The Cirrus 80 is available in two power versions, 300/600 W and 450/800 W, each offering two selectable heating levels, suitable for 230 V AC operation. PTC fan heaters provide all the advantages of PTC heating technology. Due to the PTC effect, the heating elements automatically adjust their power output without ever exceeding a maximum temperature. This ensures both high operational safety and energy efficiency, without the need for additional switching components. Key features: Most powerful PTC fan heater for targeted airflow to protect against moisture and frost in electrical enclosures and control cabinets Easy installation using 35 mm DIN rail mounting clip, EN 60715 Two power levels: 300 W or 600 W in one unit Voltage: 230 V High safety and energy efficiency through PTC effect Worldwide approvals: CE, VDE, UL Applications: ATMs, ticket machines, parking meters, access control systems, fuel dispensers, energy ports, building security systems, building management systems, landscape infrastructure systems.

Compact Semiconductor Fan Heater Cirrus 80, 450/800 Watt The PTC fan heaters of the Cirrus series are high-performance units designed for heating air and providing directed airflow in closed electrical enclosures of all kinds. They consist of a PTC heating element (semiconductor heater) and an axial fan, housed in a compact aluminum and plastic casing. Thanks to the DIN clip and terminal block, the PTC fan heaters can be easily and space-savingly integrated into customer applications. They are particularly common in control cabinets, where they protect electronic components from moisture and frost. The Cirrus 80 is available in two power versions, 300/600 W and 450/800 W, each offering two selectable heating levels, suitable for 230 V AC operation. PTC fan heaters provide all the advantages of PTC heating technology. Due to the PTC effect, the heating elements automatically adjust their power output without ever exceeding a maximum temperature. This ensures both high operational safety and energy efficiency, without the need for additional switching components. Key features: Most powerful PTC fan heater for targeted airflow to protect against moisture and frost in electrical enclosures and control cabinets Easy installation using 35 mm DIN rail mounting clip, EN 60715 Two power levels: 450 W or 800 W in one unit Voltage: 230 V High safety and energy efficiency through PTC effect Worldwide approvals: CE, VDE, UL Applications: ATMs, ticket machines, parking meters, access control systems, fuel dispensers, energy ports, building security systems, building management systems, landscape infrastructure systems.

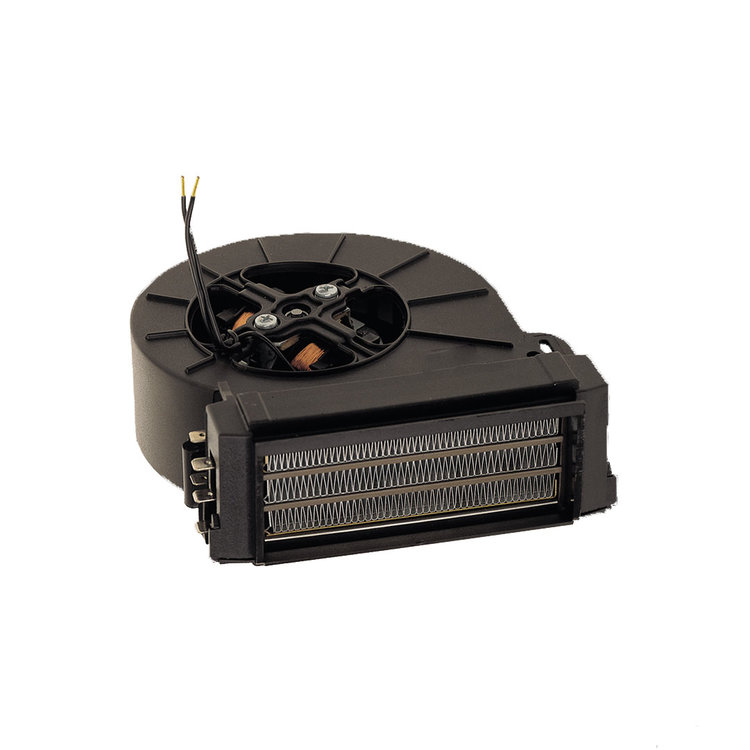

Radial Fan Heater LA09 – 500W, 230VThe LA09 Radial Fan Heater is a powerful PTC air heater designed for targeted air heating and airflow management in electrical enclosures, control cabinets, and sensitive equipment housings. With a heating power of 500 W and operating at 230 V AC, this unit provides reliable protection against moisture and frost, ensuring optimal conditions for your electronics.Key Features500W Heating Power: Delivers rapid and effective air heating for enclosures and cabinets.PTC Technology: Self-regulating ceramic heating elements dynamically adjust output, preventing overheating and maximizing safety and energy efficiency.Integrated Radial Fan: Ensures targeted airflow and even heat distribution within the enclosure.Temperature Limiter: Built-in safety limiter (80°C) for added protection.Ready-to-Install: Supplied as a compact, pre-assembled unit for quick installation in custom housings.Robust Construction: Durable plastic housing designed for demanding industrial environments.Maintenance-Free: No additional switching elements required thanks to the PTC effect.Technical SpecificationsParameterValueHeating Power500 WVoltage220–240 V ACFrequency50 HzInrush Current9 AMax. Surface Temperature230°CMax. Outlet Air Temperature130°COperating Temperature Range-30°C to +25°CLifetime at 25°C50,000 hoursDimensions (L x W x H)143 x 145 x 55 mmTemperature Limiter80°CMountingFor installation on flat surfacesHousing MaterialPlasticTypical ApplicationsElectrical and control cabinetsOutdoor kiosks and terminalsPayment, ticket, and parking machinesRenewable energy and telecom cabinetsCCTV, display, and sensor protectionFuel dispensers and energy portsBenefitsReliable protection against condensation and frostFast, even heating with targeted airflowHigh operational safety and energy efficiencyEasy and flexible integration into custom enclosures

Radial Fan Heater LA09 – 700 W, 230 VThe LA09 Radial Fan Heater is a powerful PTC air heater designed for targeted air heating and airflow management in electrical enclosures, control cabinets, and sensitive equipment housings. With a heating power of 700 W and operating at 230 V AC, this unit provides reliable protection against moisture and frost, ensuring optimal conditions for your electronics.Key FeaturesHigh Heating Power: 700 W output for rapid and effective air heating in enclosures and cabinets.PTC Technology: Self-regulating ceramic heating elements dynamically adjust output, preventing overheating and maximizing safety and energy efficiency.Integrated Radial Fan: Ensures targeted airflow and even heat distribution within the enclosure.Temperature Limiter: Built-in safety limiter (80°C) for additional protection.Ready-to-Install: Supplied as a compact, pre-assembled unit for quick installation in custom housings.Robust Construction: Durable plastic housing designed for demanding industrial environments.Maintenance-Free: No additional switching elements required thanks to PTC effect.Technical SpecificationsParameterValueHeating Power700 WVoltage220–240 V ACFrequency50 HzInrush Current9 AMax. Surface Temperature230°CMax. Outlet Air Temperature130°COperating Temperature Range-30°C to +25°CLifetime at 25°C50,000 hoursDimensions (L x W x H)143 x 145 x 55 mmTemperature Limiter80°CMountingFor installation on flat surfacesHousing MaterialPlasticTypical ApplicationsElectrical and control cabinetsOutdoor kiosks and terminalsPayment, ticket, and parking machinesRenewable energy and telecom cabinetsCCTV, display, and sensor protectionFuel dispensers and energy portsBenefitsReliable protection against condensation and frostFast, even heating with targeted airflowHigh operational safety and energy efficiencyEasy and flexible integration into custom enclosures

Typhoon 25 20W 24V Heater | 24V FanThe Typhoon 25 20W 24V Heater with 24V Fan by DBK is a compact and reliable PTC fan heater, engineered for efficient climate control and condensation protection in electrical enclosures, control cabinets, and sensitive equipment. Combining advanced PTC ceramic heating technology with a high-performance axial fan, the Typhoon 25 delivers targeted airflow and consistent heating in a remarkably small footprint.Key FeaturesPowerful Heating: 20W heating element at 24V AC/DC ensures rapid and effective temperature regulation, ideal for preventing condensation and frost in enclosed spaces. Integrated 24V Fan: Dedicated 25mm axial fan provides optimal airflow for even heat distribution and enhanced climate control. Compact & Lightweight: Small form factor (25 x 30 x 37 mm) and lightweight (30g) design make it perfect for installations where space is limited. Reliable PTC Technology: Self-regulating Positive Temperature Coefficient (PTC) heating element automatically adjusts output, preventing overheating and maximizing energy efficiency—no additional switching components required. Easy Installation: Supplied with M3 brass inserts for secure mounting and a 185mm harness for straightforward electrical connection. Durable Construction: High-temperature resistant plastic housing ensures long-term performance in demanding environments. Long Service Life: Fan lifetime rated up to 70,000 hours at 45°C for maintenance-free operation. Safe & Certified: Electrical protection class SK III / SELV, RoHS compliant, and designed for safe operation in industrial settings.Technical SpecificationsParameterValueHeating Power20 W at 10°CHeater Voltage24 V AC/DCFan Voltage24 V DCDimensions (WxHxL)25 x 30 x 37 mmWeight30 gFan Airflow3.26 m³/hOperating Temperature-10°C to +50°CStorage Temperature-40°C to +70°CFan Life (MTTF at 45°C)70,000 hoursHarness Length185 mmProtection ClassSK III / SELVRoHS ApprovedYesTypical ApplicationsElectrical and control cabinetsIndustrial automation enclosuresOutdoor kiosks and terminalsPayment, ticket, and parking machinesRenewable energy and telecom cabinetsCCTV, display, and sensor protectionWhy Choose the Typhoon 25 20W 24V Heater?The Typhoon 25 stands out for its high power-to-size ratio, energy efficiency, and robust construction. Its PTC technology ensures safe, maintenance-free operation, while the compact design allows for easy integration into any enclosure where reliable heating and airflow are essential.

Typhoon 25 40W 24V Heater | 24V FanThe Typhoon 25 40W 24V Heater with 24V Fan by DBK is a compact and reliable PTC fan heater, engineered for efficient climate control and condensation protection in electrical enclosures, control cabinets, and sensitive equipment. Combining advanced PTC ceramic heating technology with a high-performance axial fan, the Typhoon 25 delivers targeted airflow and consistent heating in a remarkably small footprint.Key FeaturesPowerful Heating: 40W heating element at 24V AC/DC ensures rapid and effective temperature regulation, ideal for preventing condensation and frost in enclosed spaces. Integrated 24V Fan: Dedicated 25mm axial fan provides optimal airflow for even heat distribution and enhanced climate control. Compact & Lightweight: Small form factor (25 x 30 x 37 mm) and lightweight (30g) design make it perfect for installations where space is limited. Reliable PTC Technology: Self-regulating Positive Temperature Coefficient (PTC) heating element automatically adjusts output, preventing overheating and maximizing energy efficiency—no additional switching components required. Easy Installation: Supplied with M3 brass inserts for secure mounting and a 185mm harness for straightforward electrical connection. Durable Construction: High-temperature resistant plastic housing ensures long-term performance in demanding environments. Long Service Life: Fan lifetime rated up to 70,000 hours at 45°C for maintenance-free operation. Safe & Certified: Electrical protection class SK III / SELV, RoHS compliant, and designed for safe operation in industrial settings.Technical SpecificationsParameterValueHeating Power40 W at 10°CHeater Voltage24 V AC/DCFan Voltage24 V DCDimensions (WxHxL)25 x 30 x 37 mmWeight30 gFan Airflow3.26 m³/hOperating Temperature-10°C to +50°CStorage Temperature-40°C to +70°CFan Life (MTTF at 45°C)70,000 hoursHarness Length185 mmProtection ClassSK III / SELVRoHS ApprovedYesTypical ApplicationsElectrical and control cabinetsIndustrial automation enclosuresOutdoor kiosks and terminalsPayment, ticket, and parking machinesRenewable energy and telecom cabinetsCCTV, display, and sensor protectionWhy Choose the Typhoon 25 40W 24V Heater?The Typhoon 25 stands out for its high power-to-size ratio, energy efficiency, and robust construction. Its PTC technology ensures safe, maintenance-free operation, while the compact design allows for easy integration into any enclosure where reliable heating and airflow are essential.
