Cirrus 40/2 PTC Fan Heater – 230W, 230V Heater | 12V Fan
€105.95
Product information "Cirrus 40/2 PTC Fan Heater – 230W, 230V Heater | 12V Fan"

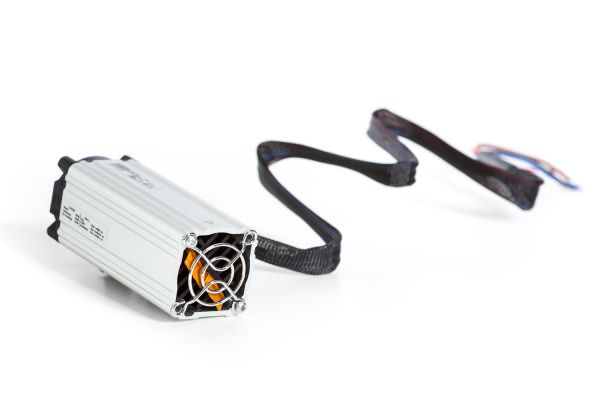

Cirrus 40/2 PTC Fan Heater – 230W, 230V Heater | 12V Fan
The Cirrus 40/2 PTC Fan Heater is a high-performance, compact heating solution designed for precise air heating and climate control in electrical enclosures, control cabinets, and sensitive electronics. With a powerful 230W PTC heating element (230V) and a dedicated 12V DC or AC axial fan, this model ensures reliable protection against condensation and frost, keeping your equipment safe and operational.
Key Features
230W Heating Power: Delivers robust, energy-efficient heating for medium to large enclosures and cabinets.
Separate Power Supplies: Independent circuits for the heater (230V AC) and fan (12V DC or AC) allow for flexible operation and enhanced safety.
PTC Technology: The self-regulating ceramic heating element dynamically adjusts power output, preventing overheating and maximizing safety and efficiency.
Fan-Only Mode: The fan can be operated independently for air circulation without heating.
Compact & Durable: Robust construction with an aluminum and heat-resistant plastic housing, designed for easy DIN rail mounting (TS35).
Easy Installation: Pre-wired and equipped with a DIN rail clip for fast, space-saving integration.
Long Service Life: High-quality axial fan rated for up to 120,000 hours (L10 at 40°C).
Certified Safety: Worldwide approvals including CE, VDE, UL, and CSA.
Optional Accessories: Finger guard and air filter available for added safety and air quality.
Technical Specifications
Parameter | Value |
|---|---|
Heating Power | 230 W (at 10°C) |
Heater Voltage | 230 V AC |
Fan Voltage | 12 V DC or 12 V AC |
Fan Airflow | 17 m³/h |
Inrush Current (max) | 9 A |
Dimensions (WxHxL) | 42 x 42 x 107 mm |
Weight | 275 g |
Mounting | DIN rail (TS35) |
Protection Class | I |
Ingress Protection | IP20 |
Fan Lifetime (L10 at 40°C) | 120,000 hours |
Operating Temperature Range | -10°C to +70°C |
Typical Applications
Electrical and control cabinets
Industrial automation enclosures
Outdoor kiosks and terminals
Payment, ticket, and parking machines
Renewable energy and telecom cabinets
CCTV, display, and sensor protection
Why Choose the Cirrus 40/2?
The Cirrus 40/2 stands out for its high power-to-size ratio, energy efficiency, and maintenance-free operation. Its PTC technology ensures safe, self-regulating heating, while the robust design and long-life fan guarantee reliable service even in demanding environments. This makes it an ideal solution for protecting sensitive electronics from condensation, frost, and temperature fluctuations.
